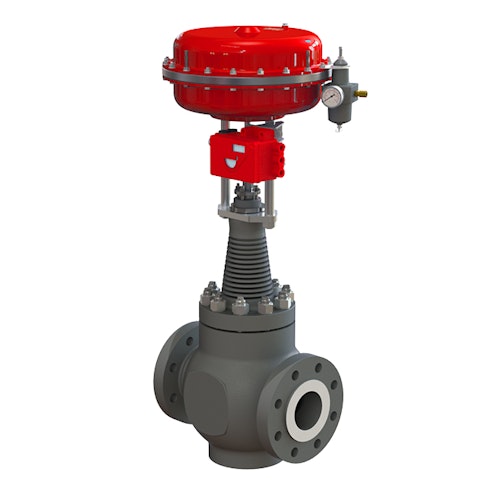

Series 6000HP
Medium and High Pressure Control Valve
Two ways pneumatic control valve especially designed for a wide range of fluids like water, thermal oil, steam, nitrogen, natural gas, etc… These pneumatic control valves offer an optimized and modular solution for industrial process.
Characteristics: Flanges ½ » to 12 » Threaded 1" to 4” Welded -BW: 1” to 12” Welded -SW: 1 » to 4 »
Temperature range: - 60°C to + 560°C
Materials: Carbon Steel 1.0619 – A 216 WCB/WCC Carbon Steel 1.6220 – A 352 LCB Carbon Steel 1.7357 – A 217 WC6 Carbon Steel 1.7379 – A 217 C12 A Stainless steel 1.4408 – A 351 CF8M Stainless steel 1.6982
- Flanges PN63, 100, 160, 250 - Class 600, 900, 1500
- Plug / Parabolic or perforated plug
- Kvs 0,4 à / to 1300
- Packing : Graphite
- Turndown 30 up to seat 15 and 50 after
Options:
- Perforated plug
- Stellited seat/plug
- Linear characteristic
- Piloted plug
- Actuator
- Pneumatic or electric actuators
Features:
- 6000 control valves are designed and built in France ensure you an excellent reliability related to exceptional performance
- Made atLeslie
- Available asLeslie
